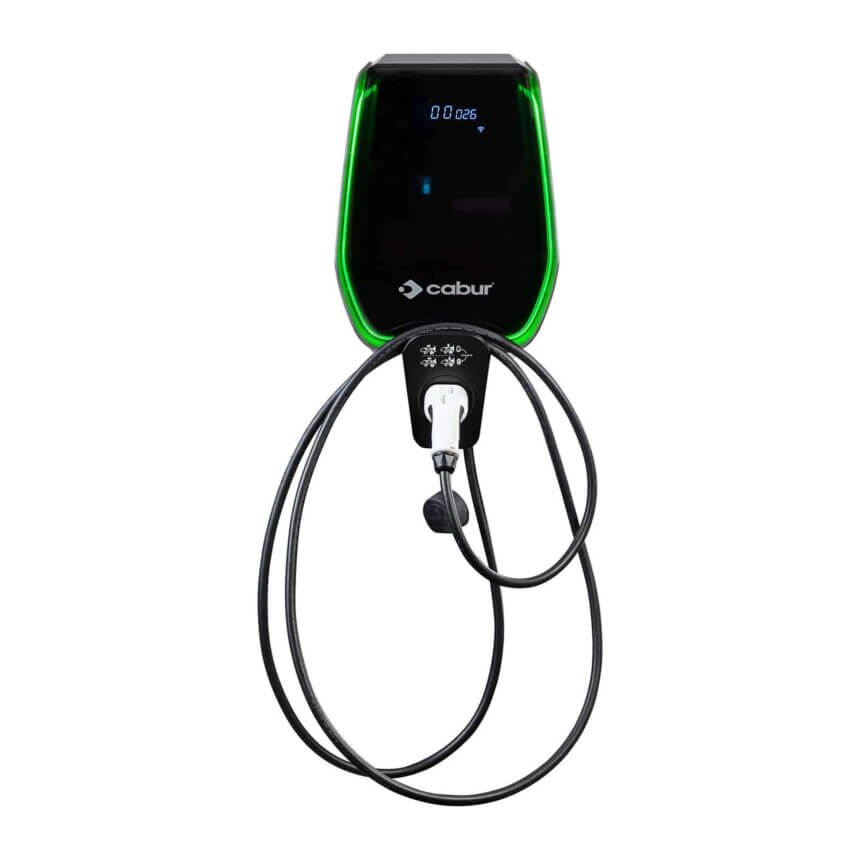

EVPLUS7C

EV charger Plus series 7kW with integrated cable
Stylish and compact design
Charging Mode: MODE 3, with cable and cable holder (CASE C)
Connector standard Type 2
WI-FI connectivity in Client or Access Point mode
Start Charging with RFID card or via OCPP1.6J
Web App configuration management
DC Earth Leakage Protection 6mA
Integrated Meter, MID certificate
Remote management via OCCP protocol
Wall or stand mounting

Series PLUS
Code EVPLUS7C
Type EVPLUS7C
HS code 85437090
PRODUCT INFORMATION
Power 3.5 -7.4 kW
Charging Mode MODE 3 CASE C (with cable 5m)
Connector standard Type 2
Dimensions (W x H x D) 355x650x150 mm
Weight 11 kg
Enclosure Material PC+ASA (UL94-V0)
Mounting Wall / Stand
GENERAL FEATURES
Voltage 230 V ±15%
Frequency 50/60Hz
Network Configuration TN/TT/IT(1P+N+T o 2P+T)
Earth Leakage Protection DC Leak (6 mA)
User interface RFID Card OCPP Control APP Control
Start/Stop Charge RFID Card or via OCPP1.6J
Communications signals LED Light belt (red, blue, green) Digital display LED indicators
Power metering Power meter MID certificate
Additionals Wifi (Client)/Wifi (Access Point) Hotspot RS485 (Pow.Managemnt ext meter) CAN (Load balancing)
Power Management Dynamic (with external energy meter)
PhotoVoltaic integration –
Dry contact –
Communication Protocol OCPP1.6J
Background Functions WIFI system upgrade
Reports Charge reports / Fault reports
Protections Overcurrent protection; Overvoltage protection; Undervoltage protection; Relay over temperature protection; Socket or plug over temperature protection; CP fault protection; Relay adhesion protection
IP Degree IP54
IK Protection degree (20°C) IK8
Ambient Temperature -25°C +50°C, forced ventilation
Operating Humidity ≤95%HR
Standards IEC 61851-1; IEC 61851-21-2 (EMC class B); IEC 62196-2; EN 300 328 (RED WiFi 2.4GHz); EN 301 489-1/17 (RF-EMC); EN 62311 (Health)
